optima sf145mf

  • Speeds Up To 18.000 Sheets Per/Hour
  • Including Foil Roll Handler
  • Including ALUS++
get in contact
in general

Optima SF145MF

With the addition of the Optima SF145MF to our portfolio, one can’t deny that we offer one of the most complete portfolio’s of cold transfer solutions in the world.

With one-of-kind features, this great cold transfer solution is equipped with state-of-the-art technology giving you the opportunity to create unique packaging on your large format press

Toothpaste without CFToothpaste with CF
Optima SF145MF

see the FEATURES

Automatic Loading and Unloading System (ALUS++)

By making the ALUS easy to operate and making it possible to load and unload two locking shafts (unwinding and rewinding) at the same time, the changeover times are reduced to a minimum. Since the ALUS is integrated into the cold transfer module, there is a clear communication process between the module and the ALUS, so safety is ensured. Based on the project, the length and height of the ALUS can be modified to create a perfect fit for every location.

Direct foil drives (DFD)

Your customer requires their job to be ready fast. With the Direct Foil Drive (DFD) technology, we guarantee flawless high-quality printing results at maximum speeds of 20.000 sheets per hour. depending on the module

Foil shaft changer

Job preparation before or during production, saving change over times Changing the reels takes place at ground level Integrated touchscreen Pre-set VIFOP data ensuring easy and fase positioning of the reels

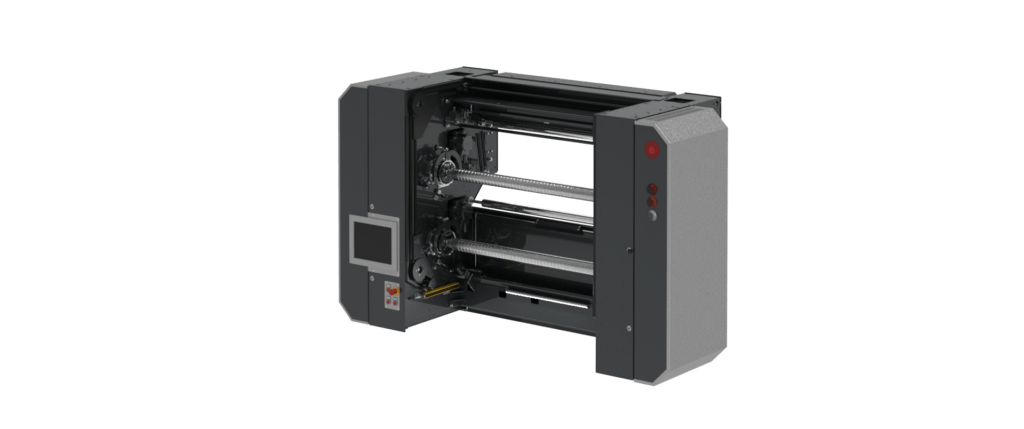

Foil Unit (FU)

With the FU, one or more foil reels can be used at the same time (Multi-reel). It has automatic diameter detection for perfect speed synchronization with the press. The foil is unwound and rewound. And the rest roll diameter can be adjusted, depending on the thickness of the foil core.

Multiple Foil Use (MFU)

By guiding the foil web back into the printing nip (after transferring parts of the metallic layer for the first time) a foil web can be used up to three times during the same job and foil savings up to 85% can be reached. (Compared to full web and laminated board, depending on the job.) If you choose to invest in the Venusta SF110MF standard version please note we offer one MFU deck, allowing you to reach foil savings up to 50%
frequently asked questions

frequently asked Questions

Using a standard offset plate, an image is printed onto a substrate by the use of a tacky adhesive. Foil spools from an unwind and is nipped to a substrate. The aluminium particles from the cold foil layer are released from the polyester film and transferred to the substrate by the tack of the glue.
An image with a bright surface is created on the sheet. Foil that does not adhere to the adhesive remains on the 12um film, and waste is directed to a rewind spool or to a shredder (Vinfoil Infigo systems).

Because the adhesive is applied like a conventional ink, no expensive stamping die has to be created. Once printed, the surface of cold foil images may be overprinted and varnished.
  • Enables full-surface sheet decoration at high speeds
  • High-speed applications up to 20,000 sheets per hour overprinting can be done inline and offline
  • Eliminates the need for engraved hot stamping dies
  • Allows use of standard offset printing plates, rollers, washing agents, rubber blankets for applying the adhesive
  • Using multiple parallel-running, narrow foil rolls, the foil consumption can be minimized and made more economical
  • Job changeovers, with or without foil, can be performed in just minutes
  • No need to apply opaque white – the foil is simply omitted in the relevant areas
  • Outstanding flatness of the output – optimal further processing
  • Speed-to-market potential – very short production times
  • Ideal for small print runs and frequent job changeovers

Multiple Foil Use (MFU) is Vinfoil’s patented foil saving technology.

By guiding the foil web back into the printing nip (after transferring parts of the metallic layer for the first time) a foil web can be used up to 3 times during the same job and foil savings up to 85% can be reached. (Compared to full web and laminated board, depending on the job.)
