Venusta SF110MF

Are you looking for an attractive cold transfer solution including many one-of-a-kind high quality Vinfoil features?

This effective and efficient cold transfer module is the perfect first step to get familliar with  cold transfer technology whilst adding value to your business.

Venusta SF110MF

see the Features

Direct foil drives (DFD)

Your customer requires their job to be ready fast. With the Direct Foil Drive (DFD) technology, we guarantee flawless high-quality printing results at maximum speeds of 20.000 sheets per hour. depending on the module

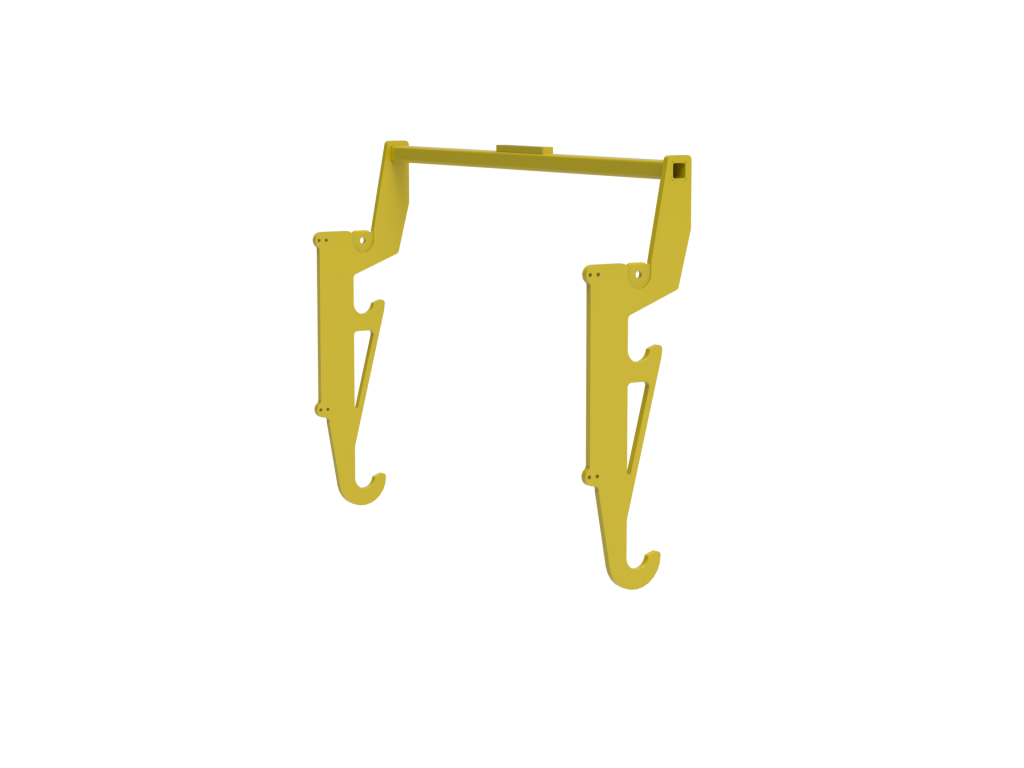

Double Lifting Hook

With his hook, both unwinding and rewinding shafts can be lifted simultaneously. This hook can be utilised by a lifting device of the customer choice.

Multiple Foil Use (MFU)

By guiding the foil web back into the printing nip (after transferring parts of the metallic layer for the first time) a foil web can be used up to three times during the same job and foil savings up to 85% can be reached. (Compared to full web and laminated board, depending on the job.) If you choose to invest in the Venusta SF110MF standard version please note we offer one MFU deck, allowing you to reach foil savings up to 50%

Shaft Parking Frame (SPF)

With the shaft parking frame, two shafts (unwinding and rewinding can be (un)loaded simultaneously. The frame can then be easily moved by a pallet truck to the desired location to unload the rolls and load the new ones.
Venusta SF110MF

see the options

Manual Foil Shaft Changer (MFSC)

MFSC is an easy tool for preparing fresh reels and empty cores before or during production. The MFSC exist of 1 SPF frame, one extra frame and: Integrated rulers for optimum reel placement. Easily transportable by forklift or pallet truck. Can be positioned on the operator side or the drive side of the printing press 2 (two) additional 3” bi-directional locking shafts

Overhead Reel Manipulator (ORM)

The overhead Reel Manipulator reduces changeover times to a minimum. It is possible to load and unload two locking shafts (unwinding & rewinding) at the same time. Changing the reels takes place at ground level, which ensures a very easy and safe operation. With this option, an external crane is not needed.

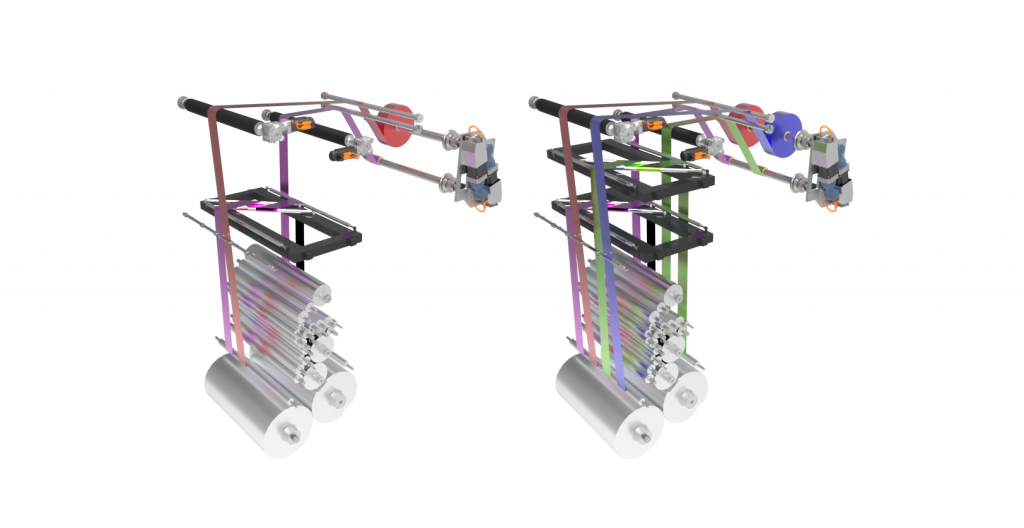

Second MFU Deck

Second MFU® deck with horizontally movable turn bars provide lateral adjustment of the foil web position. With this technology, one foil web can be used up to 3 at the same time, or two webs both twice, reducing the cold foil consumption up to 85% compared to full web productions or metalized board.

Venusta SF110MF Standard Version

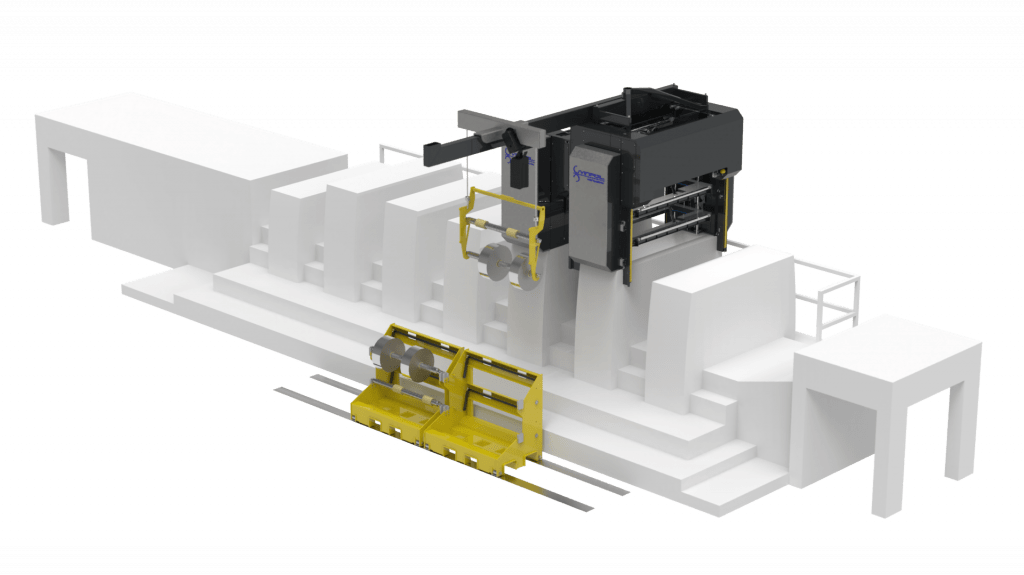

Venusta SF110MF Full Option Version

frequently asked questions

frequently asked Questions

Using a standard offset plate, an image is printed onto a substrate by the use of a tacky adhesive. Foil spools from an unwind and is nipped to a substrate. The aluminium particles from the cold foil layer are released from the polyester film and transferred to the substrate by the tack of the glue.
An image with a bright surface is created on the sheet. Foil that does not adhere to the adhesive remains on the 12um film, and waste is directed to a rewind spool or to a shredder (Vinfoil Infigo systems).

Because the adhesive is applied like a conventional ink, no expensive stamping die has to be created. Once printed, the surface of cold foil images may be overprinted and varnished.
  • Enables full-surface sheet decoration at high speeds
  • High-speed applications up to 20,000 sheets per hour overprinting can be done inline and offline
  • Eliminates the need for engraved hot stamping dies
  • Allows use of standard offset printing plates, rollers, washing agents, rubber blankets for applying the adhesive
  • Using multiple parallel-running, narrow foil rolls, the foil consumption can be minimized and made more economical
  • Job changeovers, with or without foil, can be performed in just minutes
  • No need to apply opaque white – the foil is simply omitted in the relevant areas
  • Outstanding flatness of the output – optimal further processing
  • Speed-to-market potential – very short production times
  • Ideal for small print runs and frequent job changeovers

Multiple Foil Use (MFU) is Vinfoil’s patented foil saving technology.

By guiding the foil web back into the printing nip (after transferring parts of the metallic layer for the first time) a foil web can be used up to 3 times during the same job and foil savings up to 85% can be reached. (Compared to full web and laminated board, depending on the job.)
